Name: Medical Equipment Carbon Composition Potentiometer Absolute Encoder
Brand: ANYO
Price: 1 USD

Brand Name : ANYO

Model Number : ED103

Place of Origin : CHINA

MOQ : 1000pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 30000 per day

Delivery Time : 8-10 work days

Packaging Details : 20000pcs/carton, 13kg, 40*30*25cm

Other name : Absolute Encoder

Rotational Life : 15000 times

Size : 10mm Dual unit

Total Rotational Angle : 300°±5°

Application : Medical Equipment

Rated voltage : DC5V

Contact Now

10mm Dual Unit Absolute Encoder DC5V 16 Detent For Medical Equipment

Electrical specifications:

Items	Specifications	Condition
Voltage rating	DC 10V
Current rating	1mA
Max. operating current	2mA
Contact resistance	1mΩ Max. (Including resistance of circut)	After being rotated several times,measured by voltage decreasing method at 5V DC 1A of less than 2mv 1k HZ
Insulation resistance	100MΩ Min.	At DC 250V
Dielectric strength	No subversion on insulating material	AC300V (50~60Hz) for 1 minute
Output signal	Refer to attached drawing
Stopper strength	3Kgf.cm	300° travel products

Mechanical Characteristics:

Items	Specifications	Condition
Rotational torque (gf.cm)	100~500gf.cm
Push-pull strength	Push/pull 10Kgf	10Kgf.cm for 15 seconds
Total rotational angle	300°/360°
Number of detent	16	Rotate a week (360 °) positioning number

Durability:

Items	Specifications	Condition
Rotational life	Encoder shall be operated 15,000 cycles without load	16~20 times per minute
Waterproof level	IP67
Operating temperature	-40℃~85℃

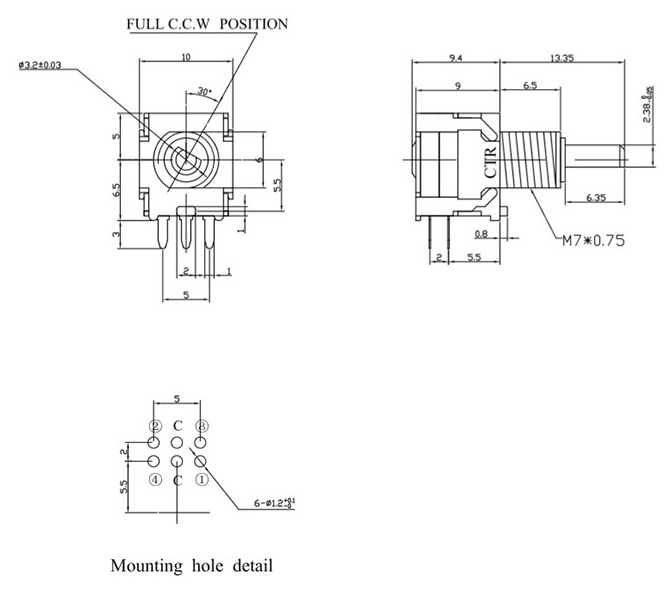

Dimension:

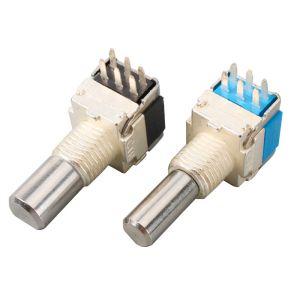

Medical Equipment Carbon Composition Potentiometer Absolute Encoder
